V-Stars is a product of Geodetic System, Inc. (GSI), an american company that works in the photogrammetry field since 30 years.
V-Stars family products gives an answer to a wide range of industrial problems (from the contactless to the large volume measurements, from the extreme environmental conditions to the moving objects) in several industrial sectors (Aerospace, Automotive, Antennas, Naval, Energy ...)

In his basic configuration, It is composed by a Custom Camera and the V-Stars software that manages the acquired images in order to compute the position of the targeted points in the 3D scene.

V-Stars S
is the single camera system that measure the scene with multiple shots made by the same camera in different positions. In a second moment the V-Stars software analyzes the images and compute the targeted points, reason of Its name: off-line photogrammetry.
The best accuracy and versatility is given by this systems, available in three different models: V-Stars N Platinum, Gold and Silver, capable of accuracy in the range between 5 um +/- 5 umm/m and 10 um +/- 10 um/m

V-Stars M
is a multiple camera system that allows real-time measuerments and works as a Portable CMM, in stable and unstable environments.
The system can measure targeted points, tactile wireless probe and projected PRO-SPOT points, and, using high speed high accuracy cameras, allows accuracy in the range between 10 um +/- 10 um/m and 14 um +/- 14 um/m

V-Stars D
is the high speed multiple camera system, able to measure up to 10 Hz on target, tactile wireless probe and projected PRO-SPOT points. The system uses special cameras, the DynaMo D5 and D12 that allow to measure with accuracy up to 14 um +/- 14 um/m (D5 @ 10 Hz) and 10 um +/- 10 um/m (D12 @ 3 Hz)

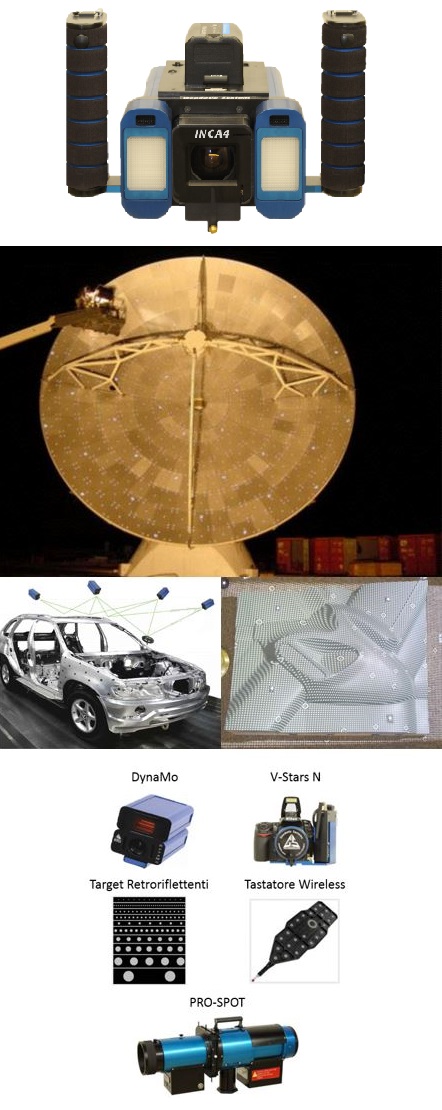

Hardware.
DynaMo D5 and D10 Cameras
V-Stars N Cameras
Passive Retroretarget
Tactile Wireless Probe
PRO-SPOT
